Here is a press I am working on.

The base is an old welding table I built years ago. Still a long way too go. I will post pics of my progress. Thx


Posted : 23/11/2018 11:38 am
cal harkins
Posts: 69
Member


looking forward to seeing what you do.


Posted : 23/11/2018 10:14 pm
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter


Made a little progress.

Attached files


Posted : 25/11/2018 12:14 am
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter


Some more progress.

Attached files


Posted : 27/11/2018 7:57 pm
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter


Some more progress

Attached files


Posted : 28/11/2018 5:03 pm
Posts: 266
Member


Awesome stuff!!!!!

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 28/11/2018 5:26 pm
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter

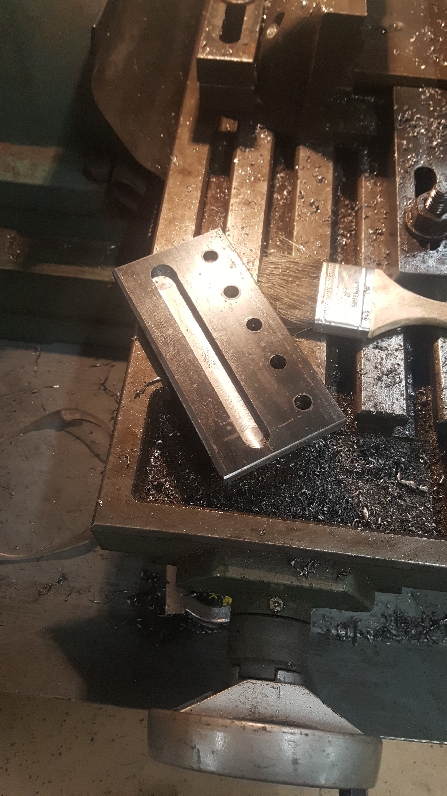

I am gonna make some brass gibs. I milled a slot for them.

Attached files


Posted : 28/11/2018 9:01 pm
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter


I drilled and tapped the area for the die holders.

Attached files


Posted : 28/11/2018 9:07 pm
Karl B. Andersen
Posts: 1067
Member


Looks pretty stout!!

Karl B. Andersen

Journeyman Smith


Posted : 29/11/2018 7:29 am
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter


|quoted:

Looks pretty stout!!

I hope so. After about 20lbs of 6011 and 7018 welding rods so far. I got the heavy 1 1/2 inch plate for free.

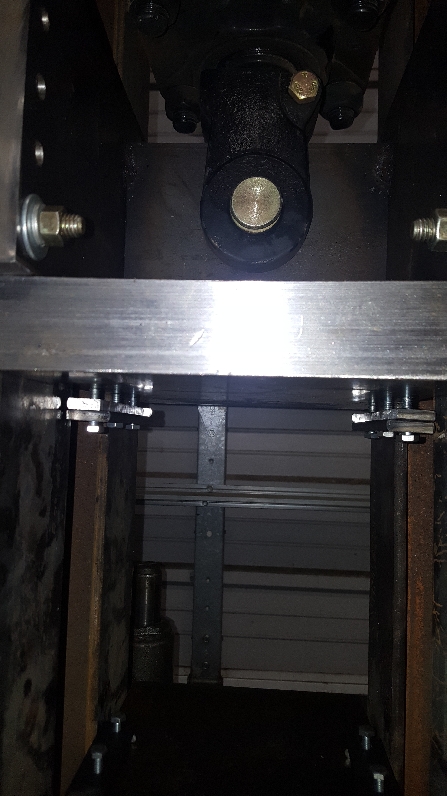

I made some die holders.

Attached files


Posted : 30/11/2018 3:50 pm
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter


Here is some more progress. I am running into a problem in figuring out where to mount the control valve. I have been thinking of making a pedal for a foot control also. I am right handed. Looking for some advice from some of the more experienced press operators. Thx in advance.

Attached files


Posted : 23/12/2018 10:37 pm
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter

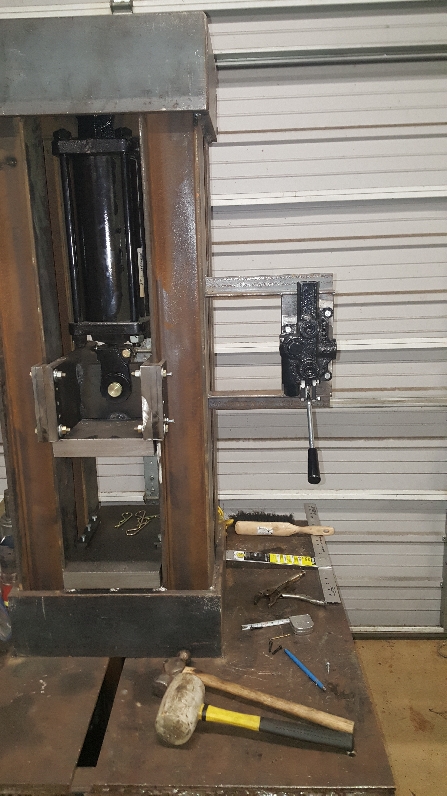

I ended up mounting the handle out to the side.

Attached files


Posted : 25/12/2018 12:45 am
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter

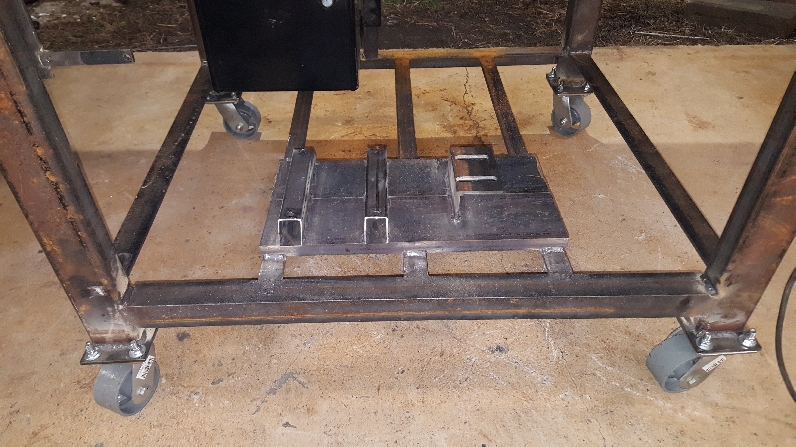

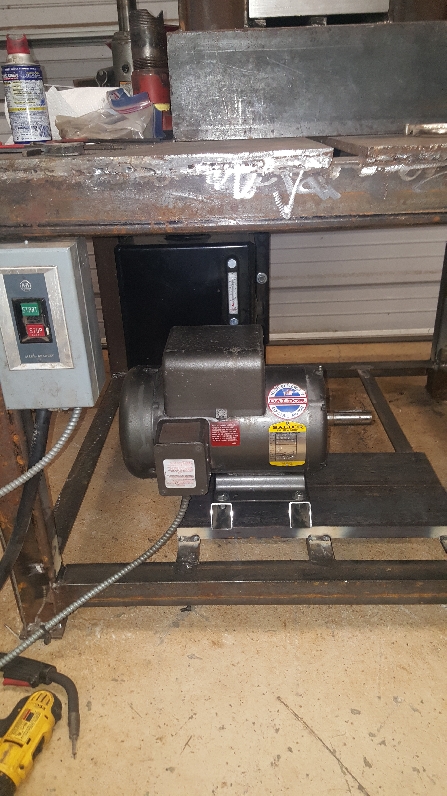

Got some wheels on it. Finally decided on the motor location. And moved the handle down.

Attached files


Posted : 31/12/2018 7:27 pm
DERRICK WULF
Posts: 133
Estimable Member Journeyman Bladesmith (5yr)


|quoted:

I am running into a problem in figuring out where to mount the control valve. I have been thinking of making a pedal for a foot control also. I am right handed. Looking for some advice from some of the more experienced press operators. Thx in advance.

I realize it's probably already too late for this, but if you are right handed, you will want your right hand free to hold and manipulate stock. Even the clumsiest left hand can operate a lever.

Good luck with the build. Looks very nice so far.


Posted : 01/01/2019 5:45 am
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)
Topic starter


Here is a pedal control I built. It works pretty good.

Attached files


Posted : 01/01/2019 5:59 pm
