Damascus Twisting Machine

8 Posts
4 Users
0 Reactions
1,641 Views
Chad Kennedy
Posts: 79
Estimable Member Journeyman Bladesmith
Topic starter

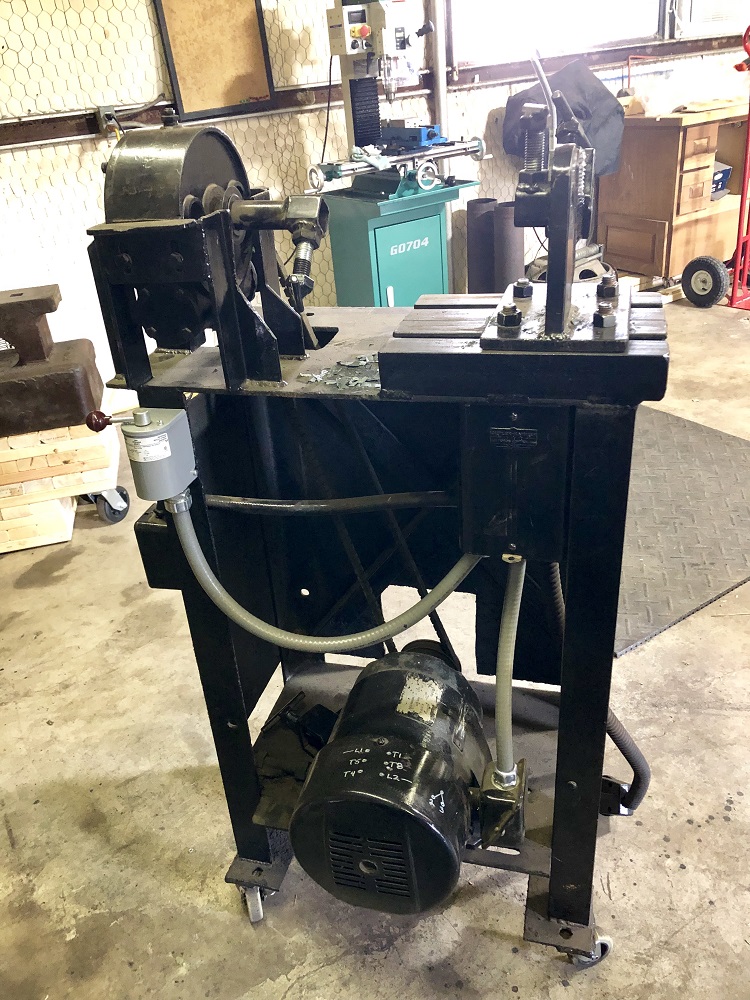

I thought I would share my little invention with yall to perhaps get your brain juices flowing. Maybe you can come up with a better version. I know Uncle Al makes a manual version but I had all the parts to make one automatic. The right angle gear reduction box is just an old winch that I re-purposed. I hope you will share your thoughts with me. It works like a champ. There are also some adapters so you can twist large cable. Check out the video. Video-Chad Kennedy Damascus Twisting Machine

Attached files


Posted : 03/02/2019 3:01 pm
Posts: 266
Member


Wow that thing is impressive!!

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 03/02/2019 4:43 pm
Chad Kennedy
Posts: 79
Estimable Member Journeyman Bladesmith
Topic starter


Thanks


Posted : 03/02/2019 9:25 pm
Karl B. Andersen
Posts: 1067
Member


Very creative.

I use a Rigid pipe threader. My system allows me to use 8 point impact sockets so I can twist any size material. You could probably alter yours to do so, as well.

Watch at the 18 minute mark:

[media] http://www.youtube.com/watch?v=M7J7DlvTeDA&t=1539s [/media]

Karl B. Andersen

Journeyman Smith


Posted : 04/02/2019 7:24 am
Chad Kennedy
Posts: 79
Estimable Member Journeyman Bladesmith
Topic starter


Great idea Karl. I do have adapters and I have shown the 2" adapter in the pictures. The primary 1 1/4" piece of square tubing with the set screw allows me to twist from 1" down to practically nothing. I don't have to let anything cool. I just stick it in there and clamp down on it. That pipe threader does save you a lot of fabricating though. Aren't those pretty expensive? Where did you get it?


Posted : 04/02/2019 9:18 pm
Karl B. Andersen
Posts: 1067
Member


|quoted:

Aren't those pretty expensive? Where did you get it?

I got that on Craigslist for $250.00

Karl B. Andersen

Journeyman Smith


Posted : 05/02/2019 6:37 am
Chad Kennedy
Posts: 79
Estimable Member Journeyman Bladesmith
Topic starter


Not bad. Well worth it I'm sure.


Posted : 05/02/2019 9:31 pm
Posts: 159
Estimable Member Apprentice Bladesmith (5yr)


That's awesome. I've been thinking of building one with a 60-1 gear reducer.


Posted : 06/02/2019 7:31 pm
