Curly Maple Hunter

4 Posts
2 Users
0 Reactions
483 Views
Posts: 22
Member
Topic starter

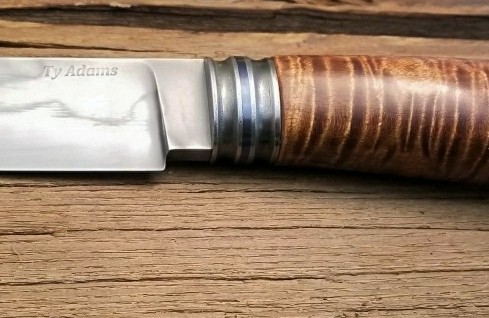

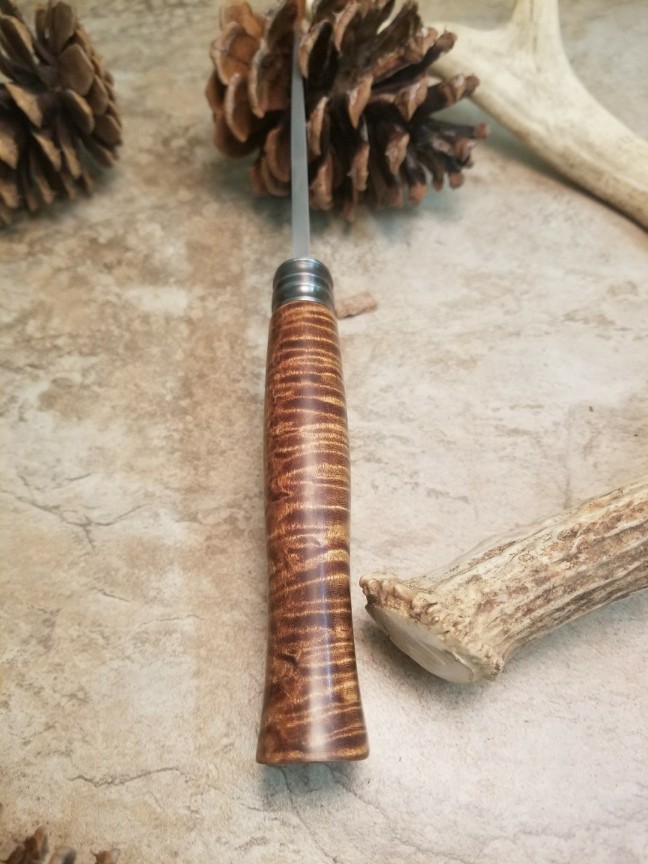

After a year long wait I finally finished this hunter. It started life in Michigan at John Doyle's shop. I went there to learn how to make a take down. He and his wife are very generous people. They opened their house to my wife and I for a full 7 days. We should have easily finished this knife in that time frame but the last couple of days of the trip I was sick. Or poisoned? I think John got tied of helping fix my mistakes, and put something in my food. So I had to bring the knife home and finish it here at my home shop. All comments and critiques are welcome, good and bad. Thanks


Posted : 25/04/2020 7:46 am
Joshua States
Posts: 1157
Member


Well, that certainly is a looker. What are the stats? (length, width, thickness, blade steel, wood, etc.)

When you say "I think John got tied of helping fix my mistakes," what were your biggest challenges? How did you resolve to avoid them on future projects?

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 28/04/2020 1:14 pm
Posts: 22
Member
Topic starter


I couldn't find the drawing and the knife is out having a sheath made. But if I remember correctly the blade is 3-5/8"X1" out of 1075, wrought iron guard, titanium spacer, and a curly maple handle with a length of 4-1/2".

The mistakes were mainly with the forged blade, and not planning ahead on the rest of the knife. Up until this point I had only made 3 piece hunters via stock removal and not very many of them. On 3 piece knives almost everything is laid out before heat treat. The thing that became very obvious while at his shop was 95% of the work on a knife like this happens after heat treat. After one week in his shop I gained more knowledge than 2 years of making mistakes at my home shop. Plan ahead, plan ahead, plan ahead.


Posted : 28/04/2020 6:08 pm
Joshua States
Posts: 1157
Member


Ty said: "Plan ahead, plan ahead, plan ahead."

Every knife I make starts with a full scale drawing. Everything is laid out. Dimensions of the blade, spacers, guard, everything, even the tang. All the materials are preplanned (this can change) as well as any embellishments (this can also change). The point being that there is a sold picture in my mind of exactly what I am going to do. For me, the crux of this art is focusing my intent. So I start with "What do I intend to make?" and I get as detailed as possible.

If I do not already have a template of the blade, I photocopy the drawing and cut the blade (tang included) and superglue it to a piece of 1/8" flat mild steel. Grind the profile to shape and keep the template at my anvil while I forge. I will trace the outline on the anvil and hold the forging over the tracing. This shows me exactly where I have to draw a little more, compress a little more, etc. to get the shape I want. I always forge a little larger so I have room to grind the profile down and smooth it out.

You will develop your own method (I'm sure John has told you his). You are off to a great start.

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 28/04/2020 8:12 pm
