OK fellas , I have a question , and I cant find the answer.

How tall should the tang be ,at the ricasso , compared to the blade height.

I'm trying to get my head aroung filing the guard, and thinking the taller the better.

HELP

Dwane

9-11-01 , We Will Never Forget.

Work smarter NOT harder


Posted : 19/02/2012 12:27 pm
Lin Rhea
Posts: 1563
Member


Dwayne,

This is one of those subjects where opinions differ. I have seen skinny stick tangs that are obviously weak and flimsy. Then there are those who swing to the other extreme. I lean heavily toward the stronger tang. I make mine about 75% the size of the ricasso. Two other things are just as important. In my opinion, it's important to lessen the possiblitity of stress risers by getting the juncture of tang and ricasso as smooth (possibly radiused) as you can using fine files etc. Also, the fit between the guard and back of the ricasso, should be TIGHT.

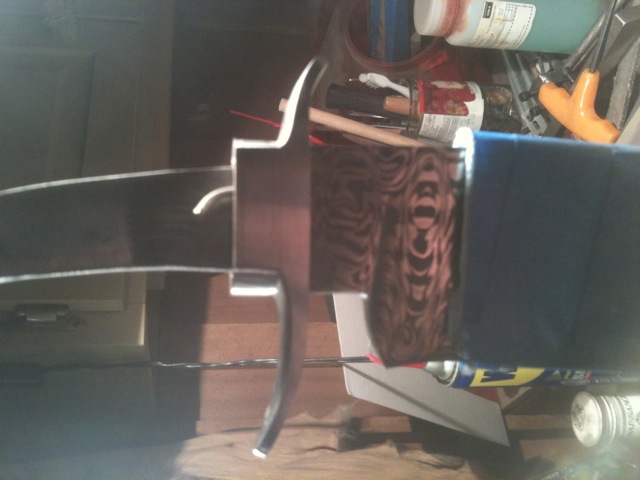

Attached files

Lin Rhea, ABS Mastersmith

[email="[email protected]"]Email me[/email]

www.rheaknives.com


Posted : 20/02/2012 5:31 am
Dwane Oliver
Posts: 40
Member
Topic starter


Thanks Lin.

I guess if your "fit" is correct , nobody could tell how big the tang is.

I'm off to make a file guide.

Dwane

9-11-01 , We Will Never Forget.

Work smarter NOT harder


Posted : 20/02/2012 7:17 am
Ed Caffrey
Posts: 751
Prominent Member Master Bladesmith


As Lin mentioned, this is going to be one of those areas that vary widely from maker to maker. The bottom line is to do what works best for YOU. I teach a lot of Basic Bladesmithing Students, and always teach them what I call the "1/3-2/3 rule" when it comes to hidden tangs.....since most hunter sized blades or the hidden tang variety will have a guard, with a "finger roll" at the bottom, I teach that the tang should be situated so that the bottom blade "shoulder" is 2/3, and the top blade shoulder is 1/3......another way to say it is that the tang is NOT centered on the blade, it's offset to the top (spine). This is often the difference between making the "finger roll" in the guard successful, or grinding through the handle material and exposing the tang (which results it starting over again).

Ed Caffrey, ABS MS
"The Montana Bladesmith"
www.CaffreyKnives.net


Posted : 20/02/2012 9:13 am
Dwane Oliver
Posts: 40
Member
Topic starter


That makes good sence , thanks ED.

9-11-01 , We Will Never Forget.

Work smarter NOT harder


Posted : 21/02/2012 8:20 pm
Posts: 27
Member


Great question and thanks for sharing the 1/3 2/3 rule Ed !

-Josh

[email protected]


Posted : 22/02/2012 11:00 am
Karl B. Andersen
Posts: 1067
Member


Another thing to remember is that many makers these days back-cut or lessen the thickness of the tang behind shoulders filed into the sides of the ricasso to cover the slot in the guard.

This makes the tang thinner. I've seen some as thin as .100"!!

So, consider the thickness of the tang as well.

Do a cross-section "cut" of the tang and measure thickness X height to get an idea of the surface area of the cross section.

This would be the strength of the tang.

If a maker does NOT thin the guard down but rather leaves it full thickness, say .200" which is twice as thick as the guy who thinned his guard down to .100", he could have the same cross-sectional material strength by having a shorter tang height!

Karl B. Andersen

Journeyman Smith


Posted : 24/02/2012 10:02 am
