Polishing The Plunge.

3 Posts
3 Users
0 Reactions
915 Views
Posts: 104
Estimable Member Journeyman Bladesmith
Topic starter


As I move towards presenting for my JS test next year I am working to come up with process for all of the sticking points that I identify in knife making.

Plunges are a PITA for everyone.

Today I tried this process.

Pics are as followed.

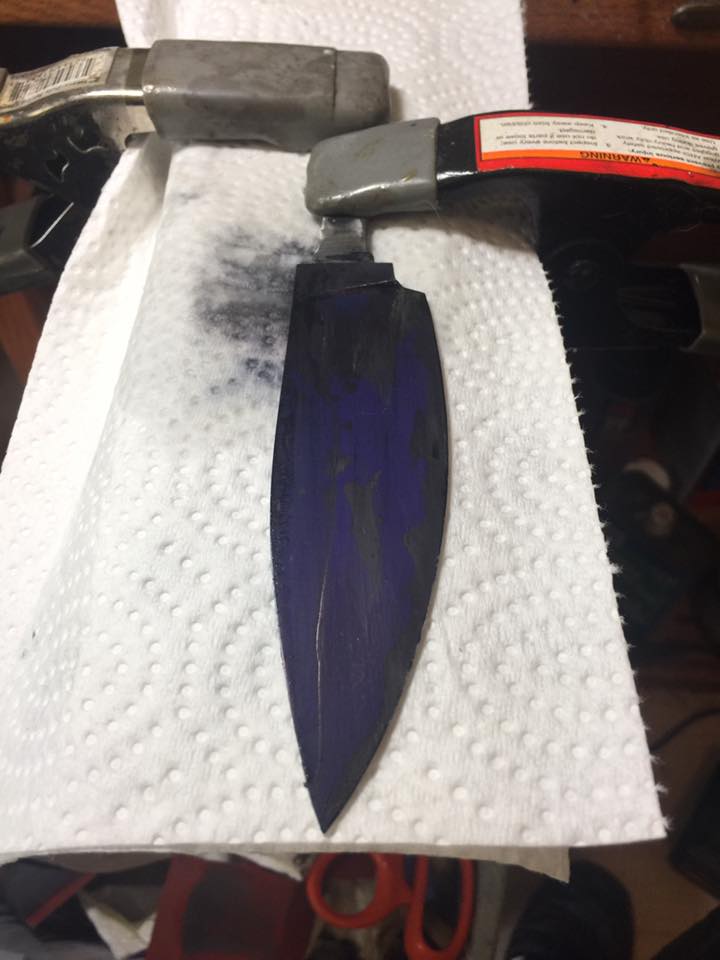

Knife is ground to about 500.

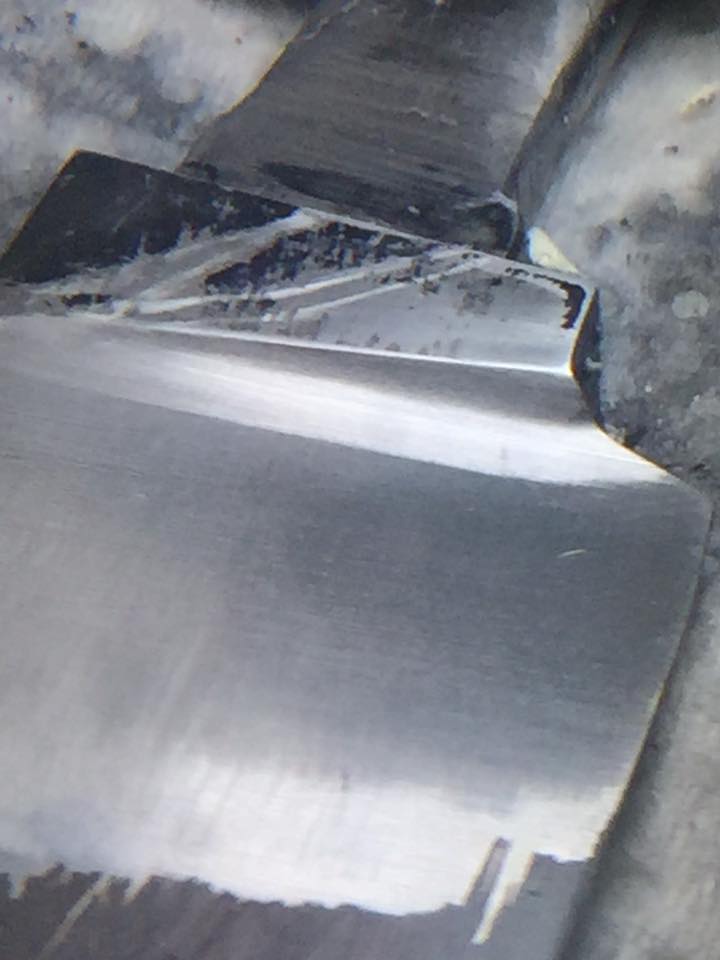

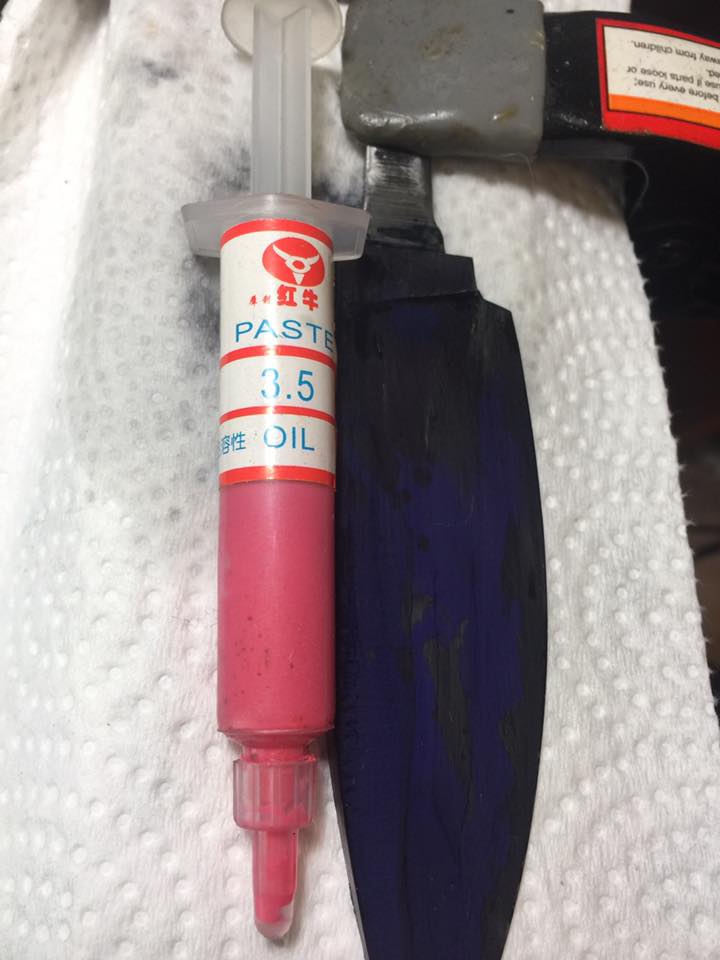

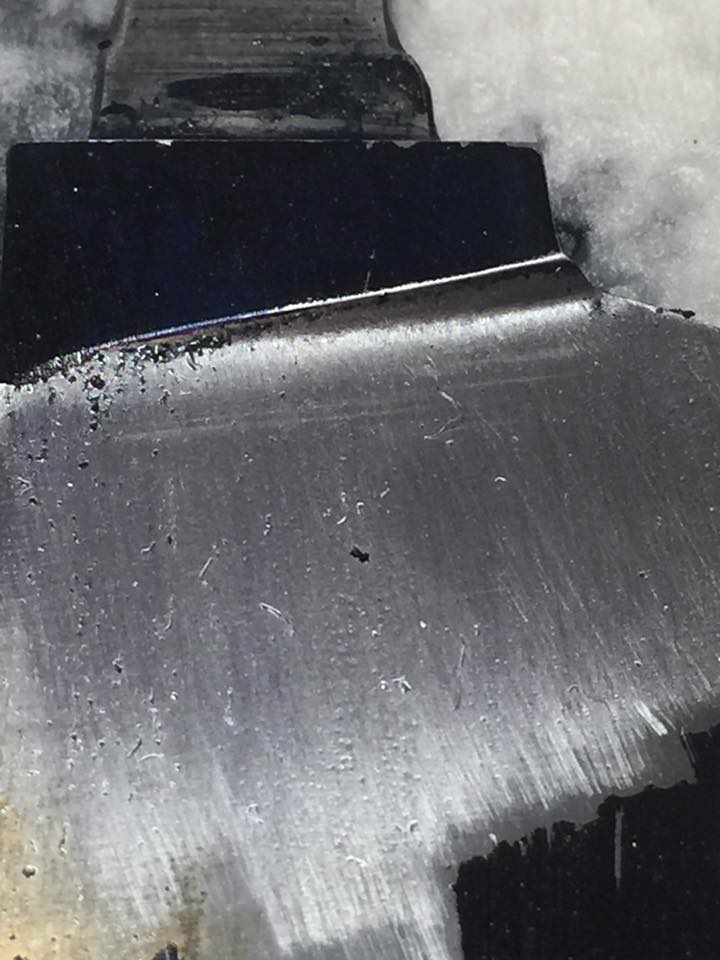

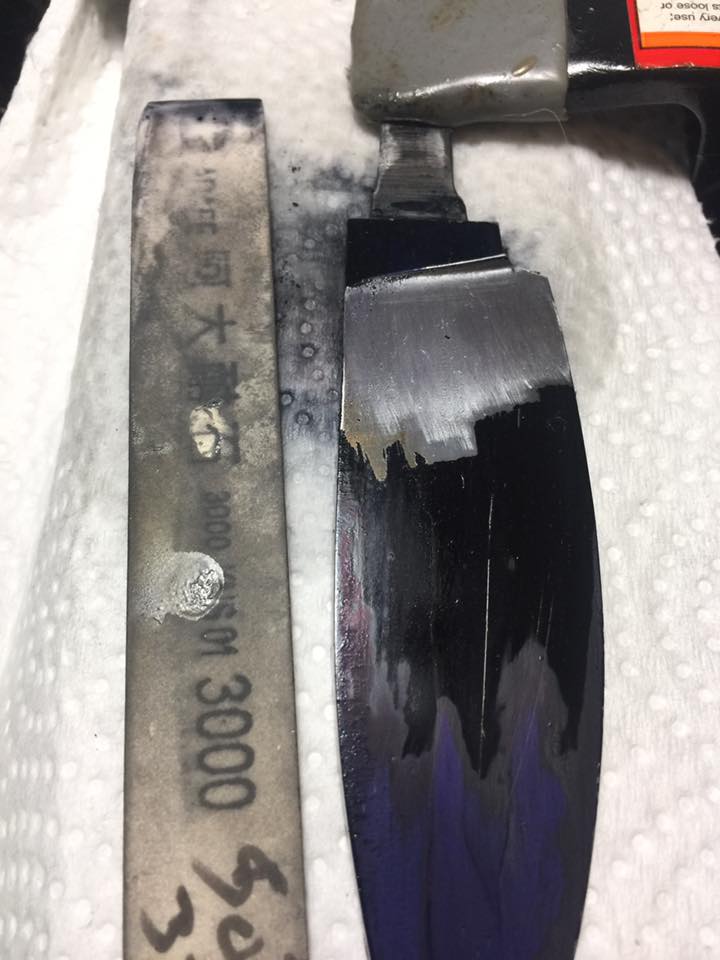

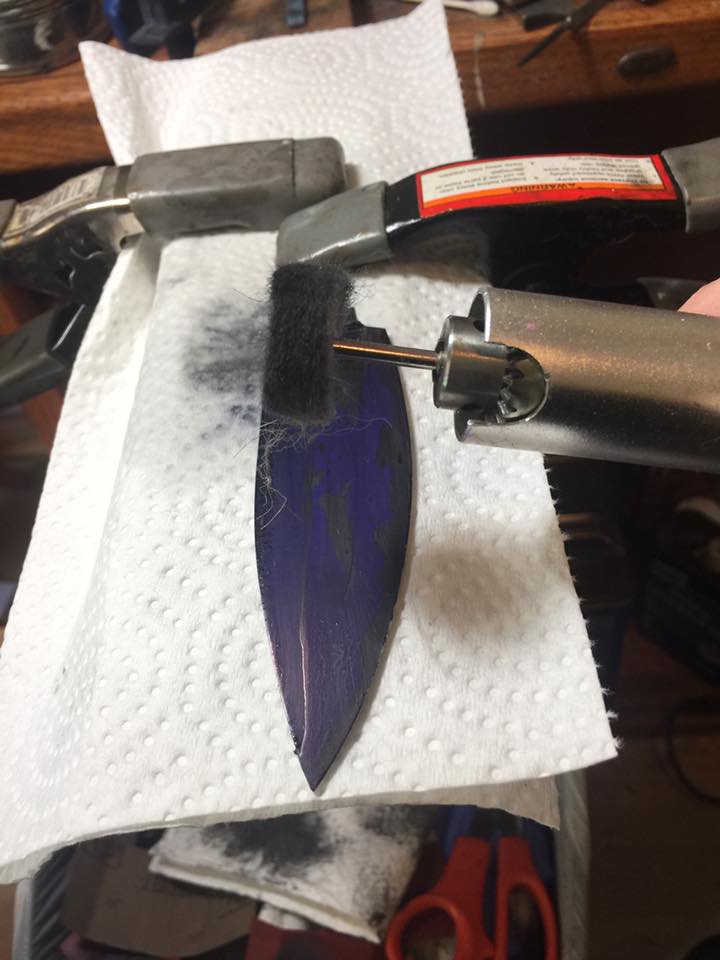

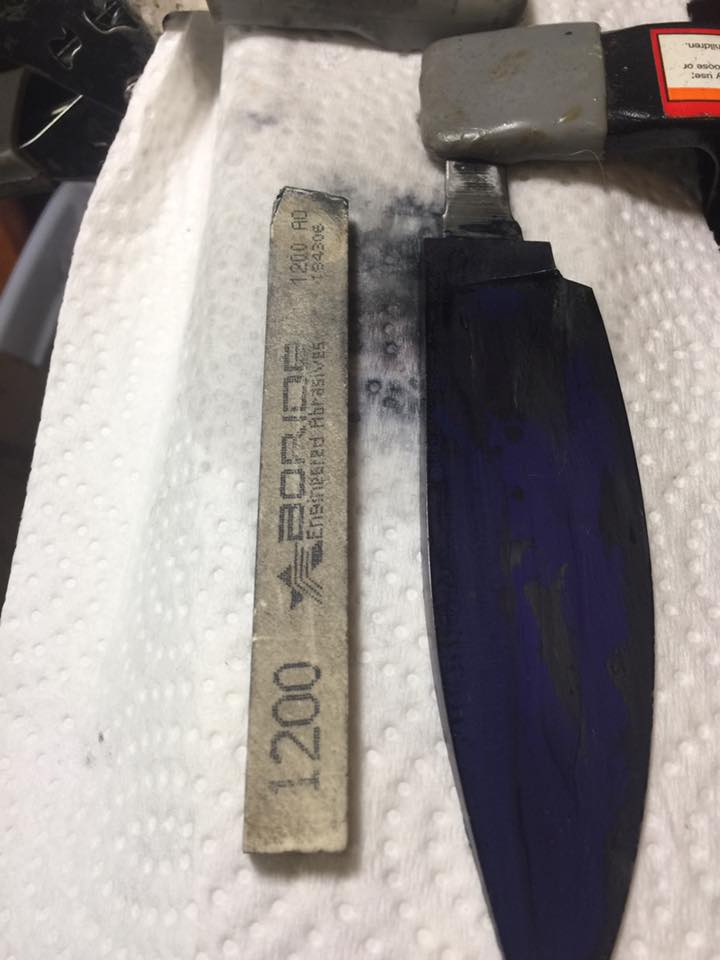

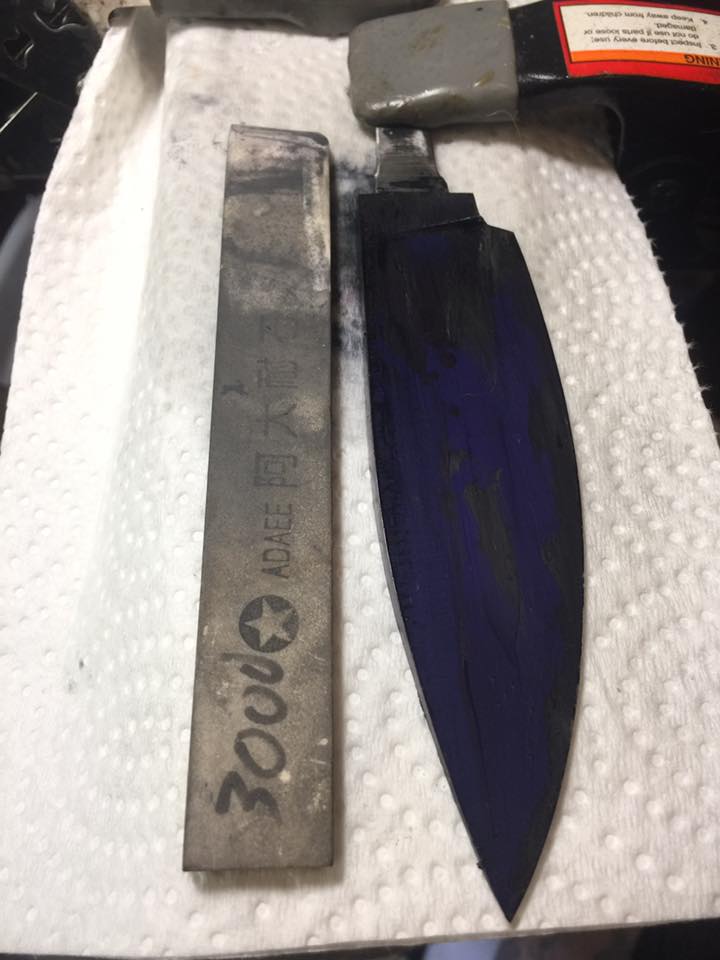

I have several EDM stones to polish the plunge and then use 3.5 micron diamond paste and a small buffing wheel on my rotary tool to polish it out.

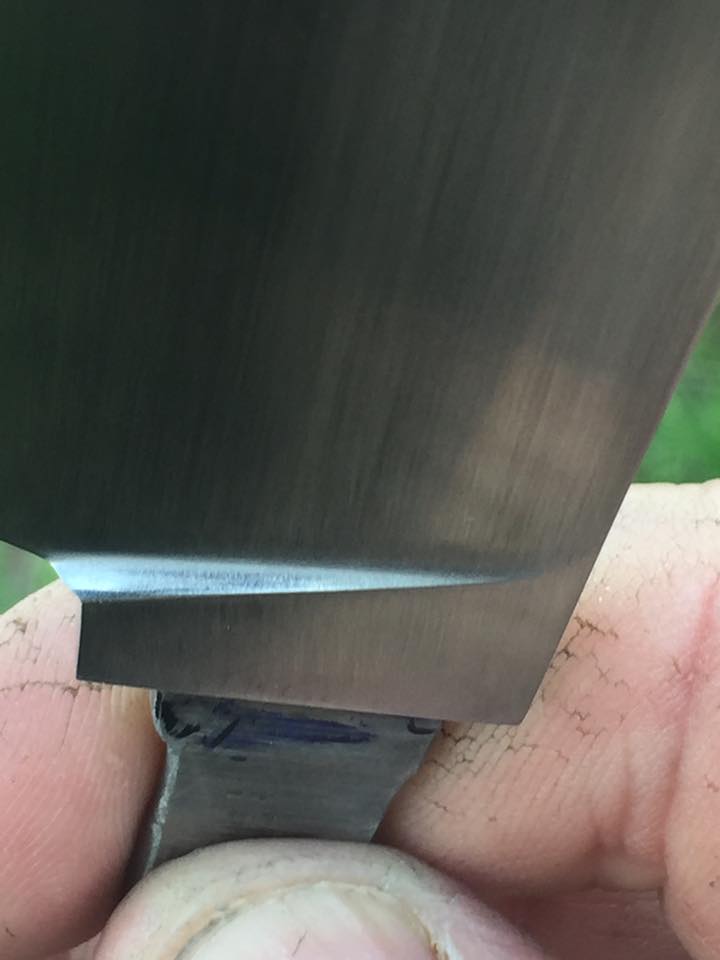

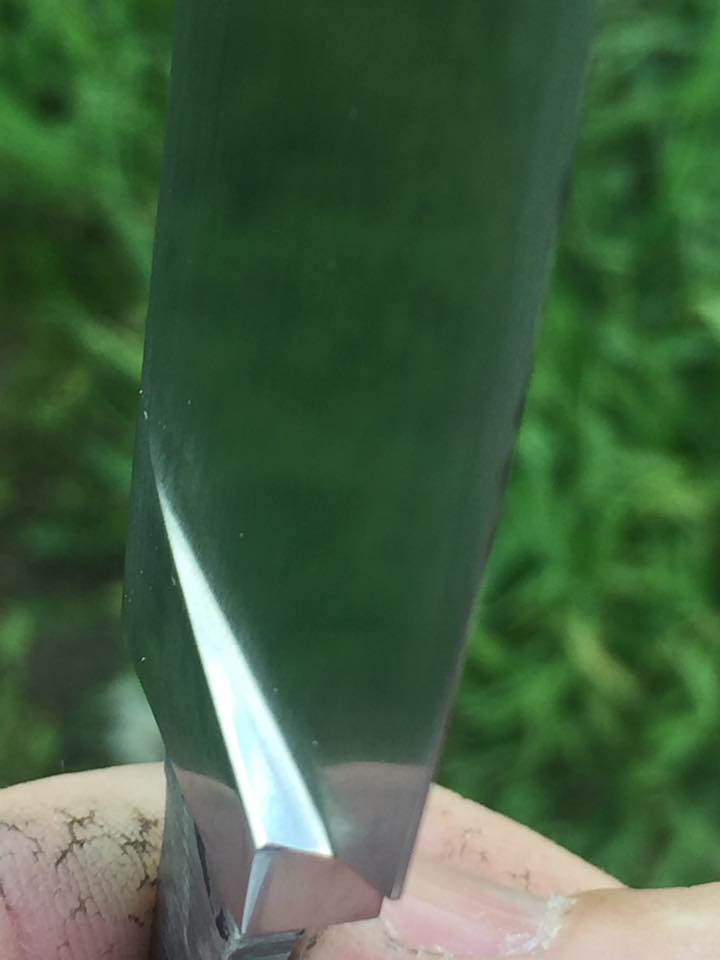

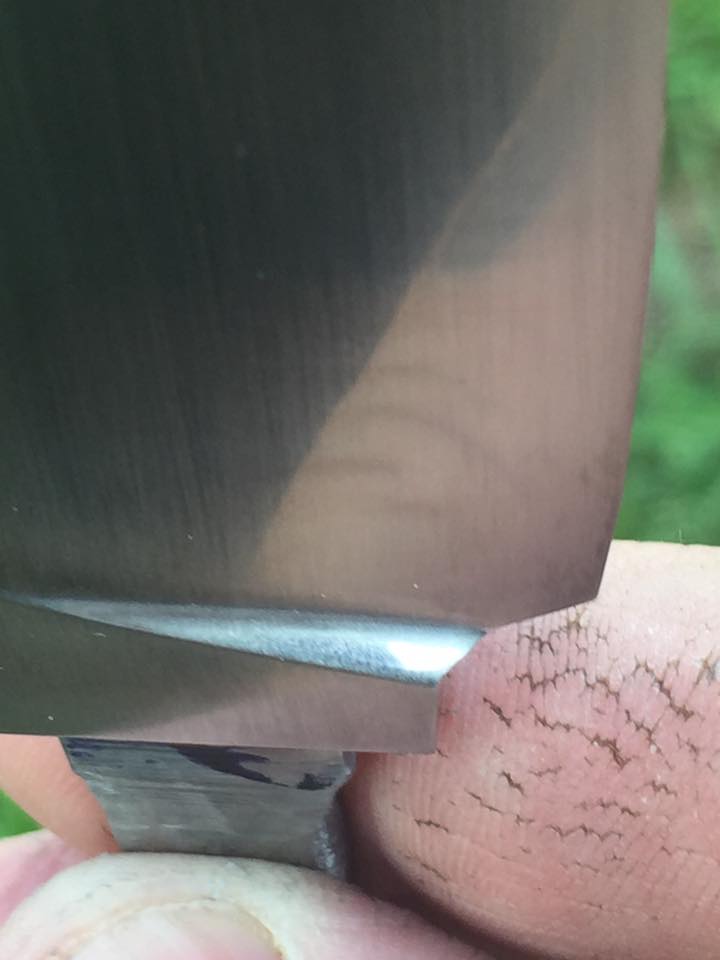

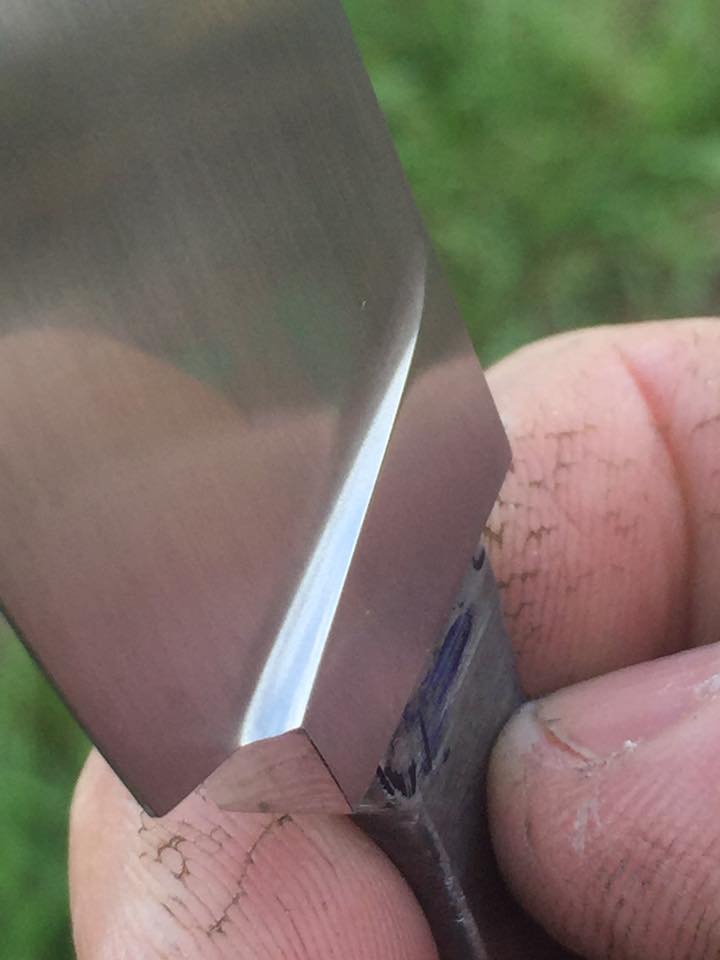

This is the result.

All feedback is welcome.

Thanks for looking.


Posted : 27/04/2017 9:57 pm
Posts: 23
Eminent Member Journeyman Bladesmith (5yr)


That looks pretty good! I'm ironing out my own processes for my JS knives, too. I wouldn't trust myself to set the plunges with a rotary tool! Is it a trick of the light or is the edge kind of rounded on the right side (when looking at the edge)? I tend to struggle with rounding over that leading corner.


Posted : 04/10/2017 9:27 pm
Posts: 26
Eminent Member Apprentice Bladesmith (5yr)


Verycool, thanks for the share


Posted : 15/11/2017 11:50 am
