What Did You Do In Your Shop Today?

125 Posts
19 Users
7 Reactions
7,784 Views
Lin Rhea
Posts: 1563
Member


That's nice looking. I really like it.

Lin Rhea, ABS Mastersmith

[email="[email protected]"]Email me[/email]

www.rheaknives.com


Posted : 10/09/2019 7:15 am
Posts: 266
Member


Thanks Lin. Its wrought iron from the Globe grain elevator that was built in 1887

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 10/09/2019 7:41 am
Posts: 266
Member


This is a another Harpoon clip Bowie I have been working on but this has a Hamon in W2 tool steel. It is a clayless Hamon meaning I didn't use any clay. I think it came out ok. I was hoping to get more activity with the clayless approach but it is what it is

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 12/09/2019 2:38 pm
Posts: 23
Member


|quoted:

This is a another Harpoon clip Bowie I have been working on but this has a Hamon in W2 tool steel. It is a clayless Hamon meaning I didn't use any clay. I think it came out ok. I was hoping to get more activity with the clayless approach but it is what it is

The reason a clayed hamon can produce more activity is because of the insulating pattern that you can paint on the blade. If you apply the clay in a pattern rather than a straight line that will change the rate of coolinge under and around and in between the clay pattern. There is a great thread in these forums where MS John White laid out his process. I pretty much follow this now.

http://www.americanbladesmith.com/ipboard/index.php?/topic/429-hamons-topic-for-november-2011/page__hl__hamon


Posted : 12/09/2019 2:59 pm
Posts: 266
Member


I hear what you are saying. I have seen some of Nick wheeler knives with clayless Hamons and they have insane activity but it might be because he also use's Salt pots to do it. I don't have a salt pot though.

Aubrey Thank you again for all your help.(Aubrey saw on Instagram I was having trouble with polishing and etching and he helped me out)

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 12/09/2019 3:14 pm
Joshua States
Posts: 1157
Member
Topic starter


|quoted:

There is a great thread in these forums where MS John White laid out his process. I pretty much follow this now.

http://www.americanbladesmith.com/ipboard/index.php?/topic/429-hamons-topic-for-november-2011/page__hl__hamon

I copied those directions (including the photos) from John White and created an Adobe pdf file. I have this on my Google drive for anyone who wants to download it.

https://drive.google.com/open?id=1Y8X4r3wskCYO_DYxSGIQ8WmWT0Wf-T2v

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 12/09/2019 8:00 pm
Posts: 266
Member

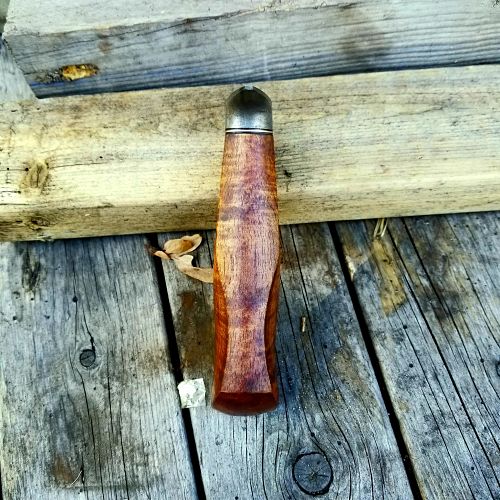

Been Working on this Handle for awhile. Its etched wrought iron, 2 black vulcanized fiber spacers, 1 copper spacer, and Tasmanian Blackwood.

This is the first time that I used alignment pins in the handle so I could build it off the knife. Let me tell you something. I will NEVER EVER glue the hole knife together and then shape the handle. It is much easier to finish shaping everything and then glue it together.

I also believe in given credit where credit is do and I just wanted thank Karl Andersen because I was watching 1 of his youtube video where he said something like "It doesn't make sense to glue everything together and then work on shaping the handle and guard". The last 2 times I did a hidden tang by gluing everything together and then work on it, I got scratch's in the ricasso and the face of the guard which is like impossible to fix when its all glued together.

Anyway here are some pics.

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 14/09/2019 9:29 am
Posts: 72
Member


Looks great Jason! I saw this on Instagram and was hoping you'd share it here too. I know the video you are talking about by Karl and it makes since once you hear it. Plus, with Karl's experience, I dont think you can go wrong listening to just about anything he says!


Posted : 14/09/2019 11:04 am
Posts: 266
Member


Thanks Andy.

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 14/09/2019 6:58 pm
Joshua States
Posts: 1157
Member
Topic starter


Jason,

I have been finishing handles off the blade for years. Hancock taught me to do it that way. How are you holding the assembly together while working? I have a post somewhere around here where I showed how to use a wood or drywall screw and a washer to keep everything tight, but I cannot seem to locate any of my posts that are older than about a year.

Wait a minute, I found it. It's about halfway down page 1.

http://www.americanbladesmith.com/ipboard/index.php?/topic/3212-hidden-tang-guard-fit-up/page__p__22316__hl__drywall%20screw__fromsearch__1&#entry22316

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 15/09/2019 9:22 am
Posts: 266
Member


Thanks for link Joshua. The way I did it I used a scrap piece wood. I drilled a hole threw it and transfer the line up pin holes from the guard into the scrap wood and then took a bolt and put it threw the scrap piece of wood and the guard and bolted it all together. Then I shaped the guard. Once I was finished with the guard I put it on the real handle and then shaped the real handle. Also the alignment pins were so tight in the guard and real handle it just stayed together.

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 15/09/2019 11:57 am
Joshua States
Posts: 1157
Member
Topic starter


I have working on a commission (blade process here) and the handle is coming along.

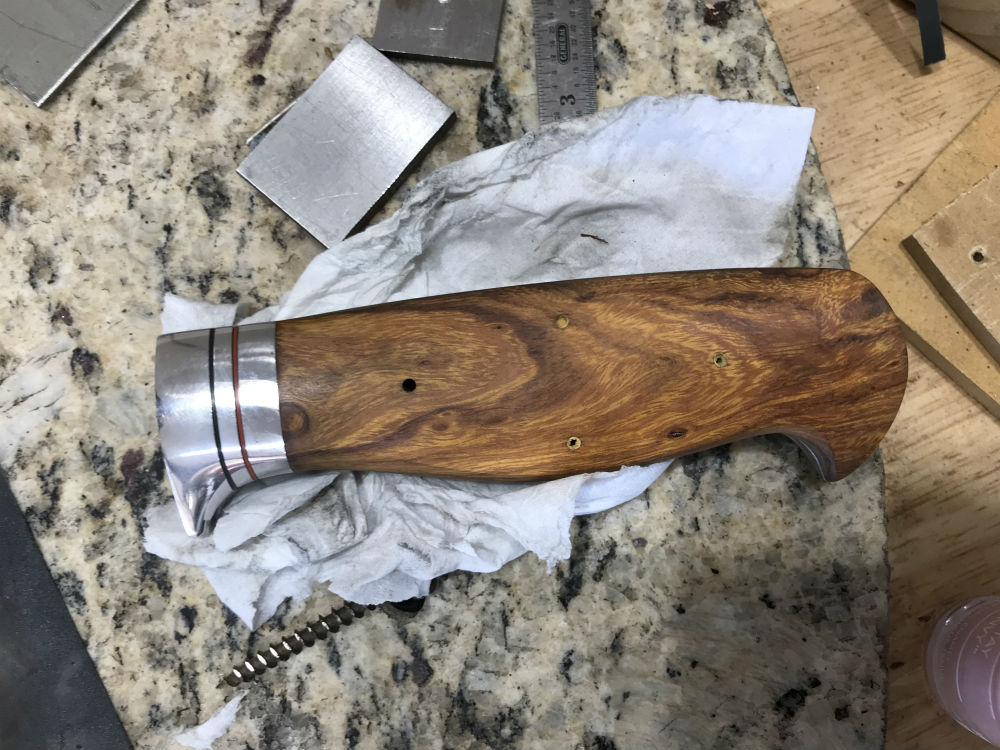

Here are some shots from the last few days. I used a piece of the bar for a spacer. Here is the handle with guard and spacer package finished to 800 and buffed.

Here is the PW spacer etched.

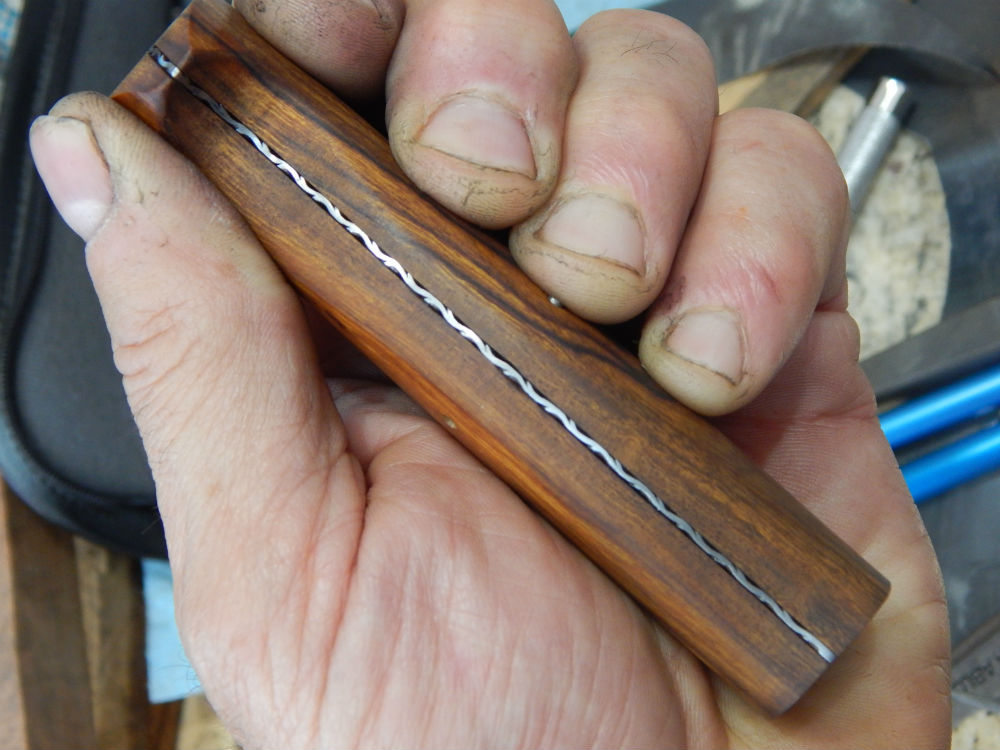

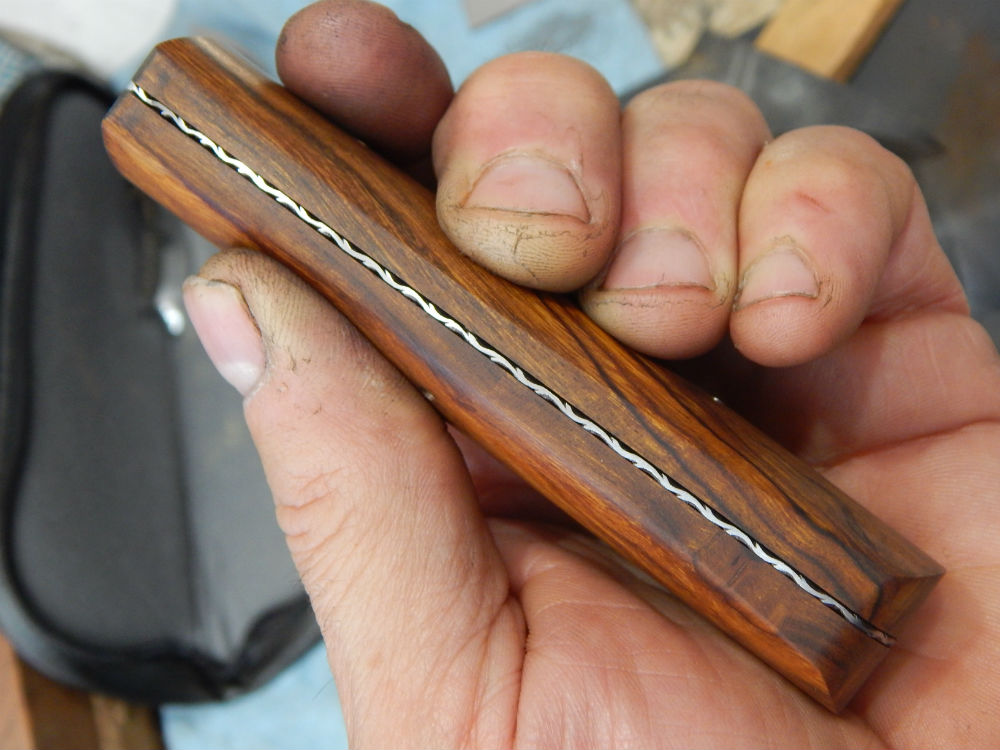

The frame is .040" 410 SS and I spent today putting the vine file work on it.

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 06/10/2019 9:06 pm
Posts: 266
Member


Joshua I really like the file work. I have yet to do file work on a knife. Looking forward to the end result.

Want to see more of my work follow me on Instagram:JasonVolkertKnives

Want to get in touch with me [email="[email protected]"]Email[/email] me.


Posted : 07/10/2019 8:11 am
Joshua States
Posts: 1157
Member
Topic starter

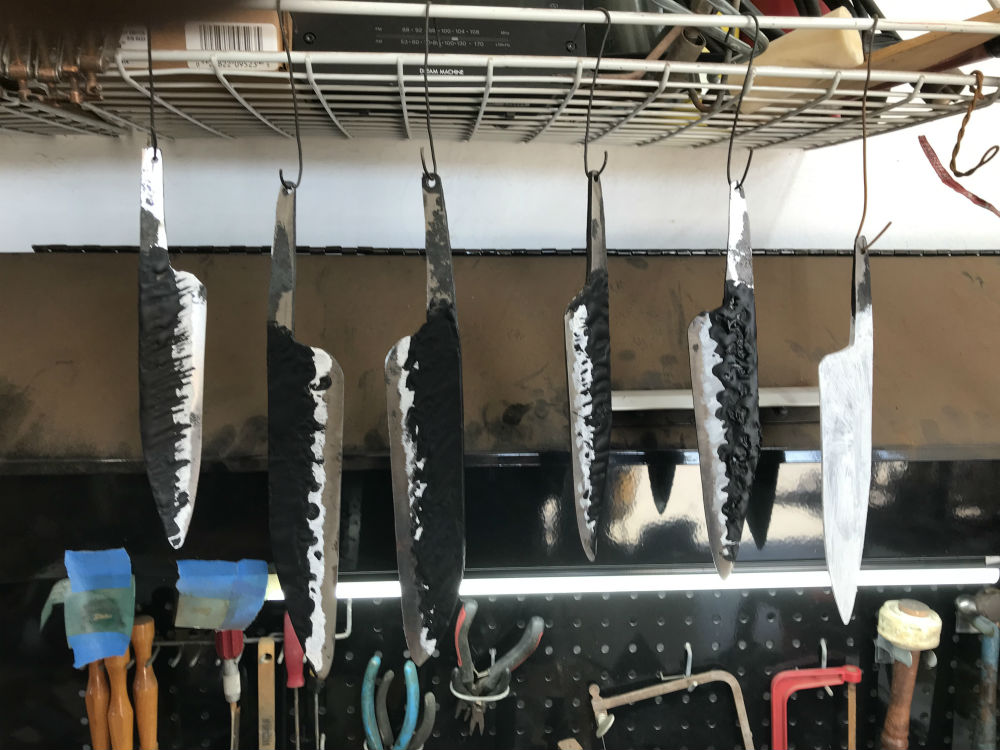

Yesterday was HT day. I have to get some kitchen knives ready for the show next month.

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 13/10/2019 8:40 am
Joshua States
Posts: 1157
Member
Topic starter


I think that final glue up is the most stressful phase of the knife making process.

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 19/10/2019 7:21 pm
