Forge Pictures

6 Posts
6 Users
0 Reactions
4,519 Views
Posts: 6
Member
Topic starter


I want to see some forge pictures! This is my vertical propane forge.

I really enjoy using propane and the pyrometer is a great asset. So what does your setup look like?

Jon Walker


Posted : 29/06/2010 3:56 pm
Posts: 2
Member


i have the three flame gas forge from majestic forge


Posted : 08/05/2012 12:09 am
Posts: 16
Member

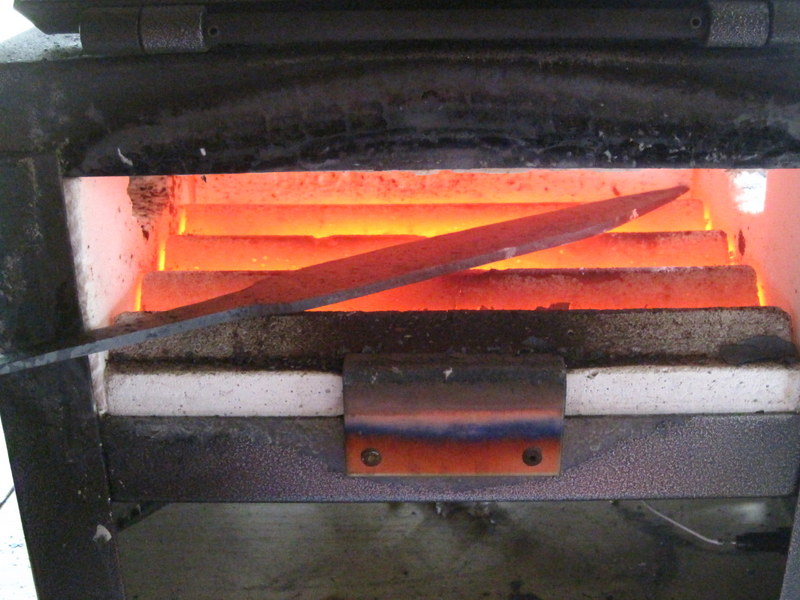

Forgemaster 2 burner blacksmith model with a big Seax normalizing in it at the end of the day.

Attached files


Posted : 07/06/2012 8:30 am
Posts: 0
New Member Guest


This is my gas forge Bill Wiggens helped me get from Len. Works like a champ, at temp on 4 PSI.

1.25 " ball bearing being heated to make a very small knife out of.


Posted : 20/06/2012 8:52 am
Posts: 27
Member


Here's a couple pics of my home built horizontal forge.

10" diameter pipe body 2" Kao wool insulation lined with Satanite. (Next time I'll probably go with 1" insulation to increase interior volume)

Adjustable work rest

PID controlled forced air with a Darrin Ellis burner kit (Now High Temp Tools and Refractory)

Bolted onto the bottom section of a Craftsman roll box (craigslist $25 for bottom and top sections) to keep everything together and easily stored out of the way when not in use.

-Josh

[email protected]


Posted : 20/06/2012 10:06 am
Posts: 3
Member


Nice setups guys. Mine is almost the same as Jon's, but I think it burns too much propane.

I'm willing to build a new and smaller forge, more like George's.


Posted : 20/06/2012 7:01 pm
