What is the rotary tool of choice for getting the nice clean radius on the handle side of the guard, where the finger rides?


Posted : 23/01/2018 6:49 pm
Posts: 0
New Member Guest


I use a Foredom Rotary Tool. I have a standard, and small hand tool for it. Works pretty good for me. I also have a battery Dremel hand tool, it works (ed) pretty well for me before I got the Foredom.


Posted : 23/01/2018 6:56 pm
Posts: 68
Member


I've been shaping my handle and guard at the same time so I've just been using a small (3/4") wheel to radius the guard.


Posted : 23/01/2018 7:51 pm
BrionTomberlin
Posts: 1675
Member


Joey I use the small wheel on my grinder for the radius. A 3/4' small wheel. That is for roughing in. After I use a foredom tool with 1/2' and 1/4' sanding drums. A variable speed dremel will work also. You can use a small half round file also.

Brion

Brion Tomberlin

Anvil Top Custom Knives

ABS Mastersmith


Posted : 23/01/2018 10:20 pm
Joshua States
Posts: 1157
Member


I took a bit of advice from Karl Anderson and have started to sculpt that curve and the handle material at the same time with files and rasps. It is a little slower, but much more controlled. Once you get the hang of it, it goes pretty fast and you very rarely, if ever, find yourself saying "Oh shoot!" because your hand slipped and you accidently ground off a piece you couldn't see at the grinder. Or something hit the belt on the bottom of the wheel while you weren't looking.

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 23/01/2018 10:24 pm
Kevin R. Cashen
Posts: 735
Member


|quoted:

What is the rotary tool of choice for getting the nice clean radius on the handle side of the guard, where the finger rides?

Foredom, absolutely one of the most used tools in my shop. I can't believe I was able to do it with a Dremmel years ago. For around, or less than, $200 the Foredom is one of the best bangs for your buck investments there is, mine gets used every day and has worked flawlessly from most of my career.

"One test is worth 1000 'expert' opinions" Riehle Testing Machines Co.


Posted : 24/01/2018 10:09 am
Karl B. Andersen
Posts: 1067
Member


|quoted:

I took a bit of advice from Karl Anderson and have started to sculpt that curve and the handle material at the same time with files and rasps.

My process has evolved a bit since then.

I shape my guards off the knife with small wheels and slack belts. Nearly to full completion right off the bat and then shape the handle TO the guard with files.

Nearly all my guards are now shaped like that.

Karl B. Andersen

Journeyman Smith


Posted : 24/01/2018 6:06 pm
Robert Wright
Posts: 425
Member


I do it pretty much like Karl, but do the fine tuning with Crossing files. They come in course, medium and fine. The fine leaves a 120 grit finish, so once it's tuned in, I can go to 220 on the guard and handle.

Bob


Posted : 25/01/2018 1:26 pm
Joshua States
Posts: 1157
Member


|quoted:

My process has evolved a bit since then.

I shape my guards off the knife with small wheels and slack belts. Nearly to full completion right off the bat and then shape the handle TO the guard with files.

Nearly all my guards are now shaped like that.

This is the way I do all my frame handles, and any knife with a flat guard, except in reverse order. I shape the handle and spacer package off the knife to 100% done (except buffing) and then make the guard to fit the handle. This allows me to get almost perfect symmetry in the handle and transfer it to the guard.

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 25/01/2018 10:40 pm
Posts: 51
Trusted Member Journeyman Bladesmith (5yr)


|quoted:

This is the way I do all my frame handles, and any knife with a flat guard, except in reverse order. I shape the handle and spacer package off the knife to 100% done (except buffing) and then make the guard to fit the handle. This allows me to get almost perfect symmetry in the handle and transfer it to the guard.

Like Karl said but I also shape the handle to 400 at the grinder.

I just realized I don't even have a decent file anymore.


Posted : 26/01/2018 1:34 pm
Joshua States
Posts: 1157
Member

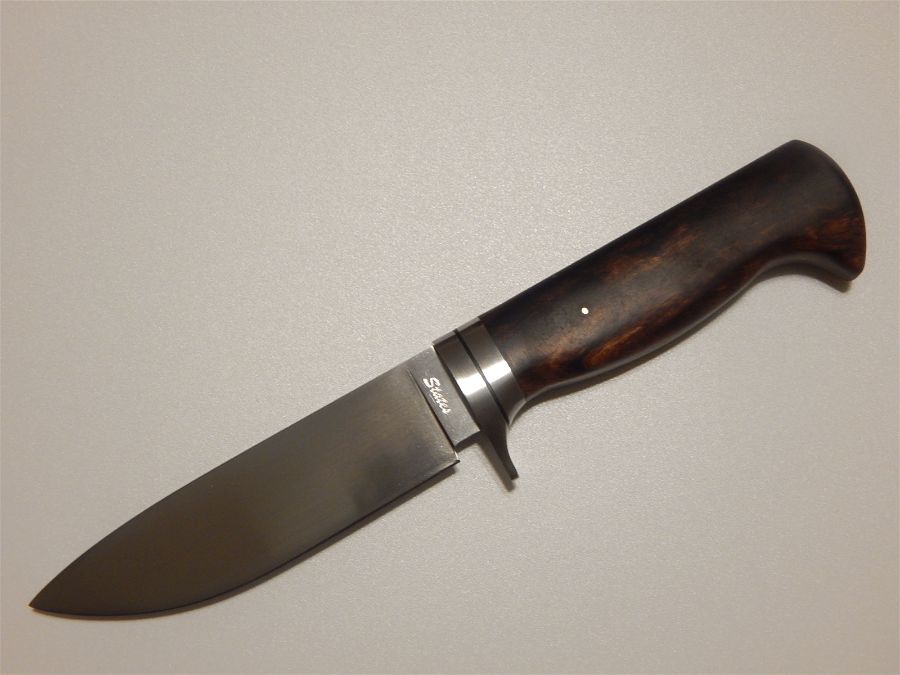

While I think that method does work well, it's not my preferred way because I dislike that sharp angle where the wood of the handle meets the metal of the guard. I prefer much more radius and curve at that transition point. Using the small wheel on the grinder to do both pieces simultaneously works well but I find the control is problematic. This is the look and feel I prefer. That's just my opinion.

Joshua States

www.dosgatosforge.com

https://www.youtube.com/channel/UCdJMFMqnbLYqv965xd64vYg

https://www.facebook.com/dos.gatos.71

Also on Instagram and Facebook as J.States Bladesmith

“So I'm lightin' out for the territory, ahead of the scared and the weak and the mean spirited, because Aunt Sally is fixin’ to adopt me and civilize me, and I can't stand it. I've been there before.”


Posted : 26/01/2018 11:53 pm
Posts: 61
Trusted Member Apprentice Bladesmith
Topic starter


Lots of good info here guys! Thanks so much. I do have a Foredom rotary tool. Just need to get some smaller radius wheels.


Posted : 29/01/2018 11:03 am
Posts: 61
Trusted Member Apprentice Bladesmith
Topic starter


|quoted:

While I think that method does work well, it's not my preferred way because I dislike that sharp angle where the wood of the handle meets the metal of the guard. I prefer much more radius and curve at that transition point. Using the small wheel on the grinder to do both pieces simultaneously works well but I find the control is problematic. This is the look and feel I prefer. That's just my opinion.

I do like the smooth continuous radius you get with your technique! Thanks!


Posted : 29/01/2018 11:15 am
